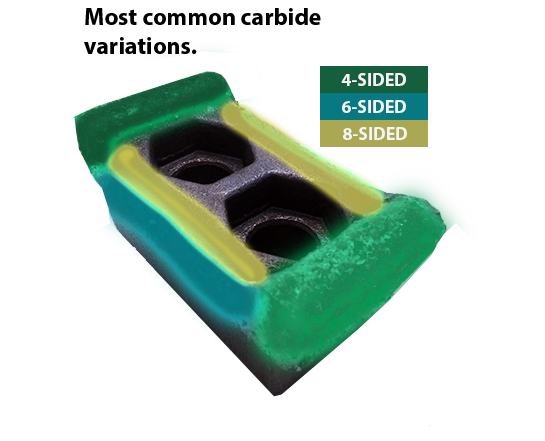

Duratech HD-8-12 Grinder Tips

Unsure this is the correct product? Give us a call (866) 227-2244


Mounting Dimensions Measurement
Outside Width 1-5/8"
Width Inside Rails 1-1/4"
Length 3-3/4"
Bolt Center to Center 1-1/2"
Face Dimensions Measurement
Width 2"
Length 4-1/2"
Bolt Size 5/8"

***Buyers must measure their holders (hammers) to ensure that the back (or mounting)  dimensions match the hammer tip, and that there is sufficient room at the face of  the tip for clearance from the grinder screens.

This tip may not fit all Duratech Tub Grinders.

Minimum order of 10


  • 2-bolt
  • Tungsten Carbide Hardfacing
  • Reversible

Reviews (0)

Be the first to write a review

SKU: ES260
Availability: Usually ships within 2 business days
Min Purchase Qty: 10 units
Shipping: Free Shipping
