Kleemann MS953(i)/MSC953(i) Conveyor Belts

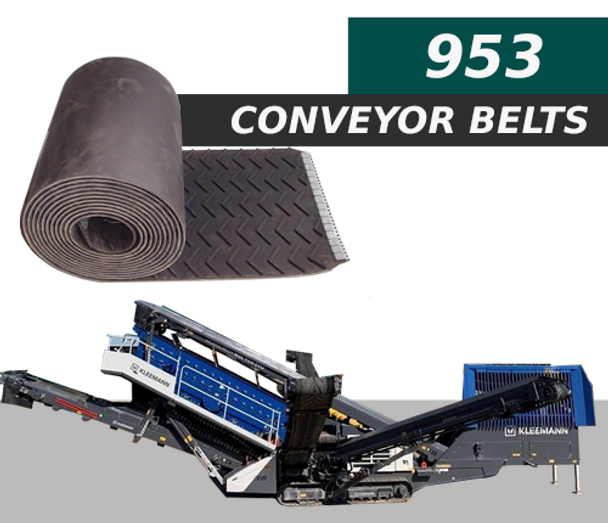

New conveyor belts for Kleeman MS953(i) and MSC953(i) Incline Screens.

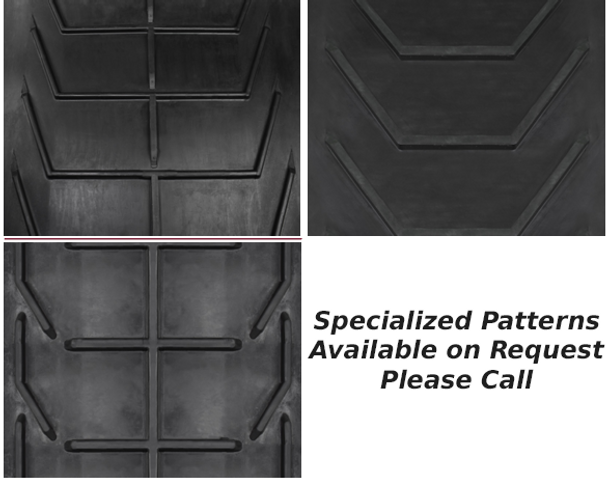

Conveyor belts from the OEM dealer/machine manual will come noted as vulcanized(endless), open-ended, with specific lacing, or special patterns. All of our belts for Kelemann come standard with FLEXCO R5 rivet lacing. Part numbers are for reference use only when determining the correct belt size. If you require open-ended, endless, or special lacing please call.

Kleemann has part numbers for every style of belt option available. For example, the main feed belt may have four or more different part numbers for endless, laced, open-ended, smooth, chevron, etc. We have listed the most common part numbers in the dropdown menus, and "extra" part numbers are listed at the bottom of this description box. Please note: All belts ordered through the site will ship pre-laced with R5 lacing and the selected pattern unless otherwise requested, regardless of part number selected. Part numbers are to help confirm belt size only.

Belt Style: 220# 2-ply and 330# 3-ply are the industry standard for aggregate screens and crushers, with 4-ply typically only used in the hopper/infeed of larger machines. 'HD' means a 3/16" thick cover vs standard 1/8" thick cover.

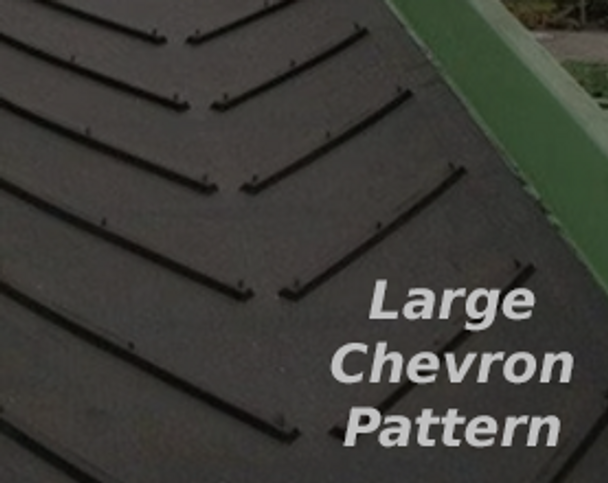

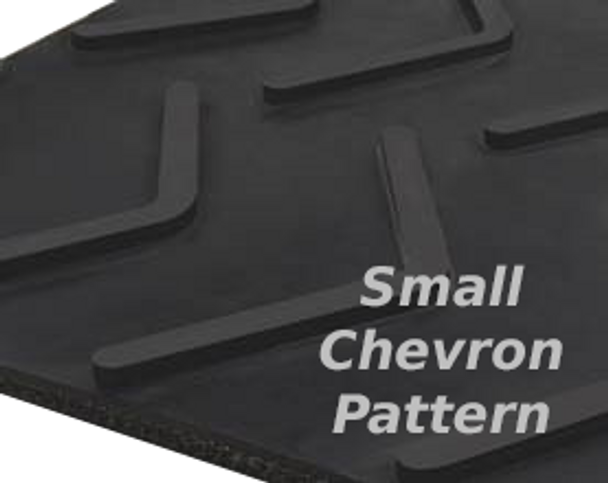

Chevron Patterns: The large chevron belt (2-ply only) has 5/8" tall cleating, which is aggressive compared to the 1/4" cleating on the small chevron belt pattern. If you are running a steep incline or material prone to rolling back this is a good pattern option. Large chevron cleat patterns are either 15" or 30" wide based on overall belt width. For example, a 26" wide belt will have a 15" wide chevron pattern. Both a 48" and 36" belt will have a 30" wide pattern. The small chevron pattern has cleating edge-to-edge regardless of belt width unless the indent option is chosen.

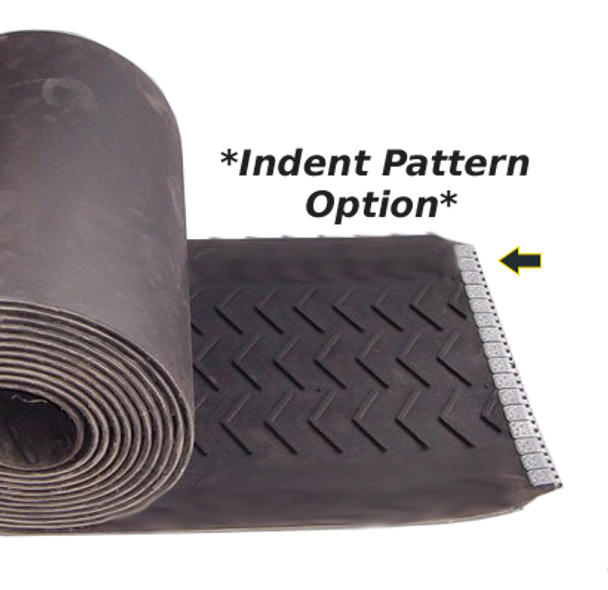

Indent Pattern: If selecting a large or small chevron pattern belt style, you may need the pattern to be inset from the edges to accommodate belt scrapers or wipers. When the indent pattern option is chosen, we will indent the pattern roughly 5-1/2" on each edge. Please specify in the notes section if you prefer a different size indent.

Please Note: The large chevron pattern will typically already have an "indent" since the pattern is only offered in 15" or 30" wide cleating. For example, a vary common stacker belt on aggregate screens would be a 26" wide belt with 15" cleating. This would already be "indented" 5-1/2" per side. However, a 32" wide belt will only have a 1" indent (30" pattern) and may require the additional indent pattern option.

Extra part numbers, please call if you are unsure what it corresponds to in the dropdown menus: 2404381, 2428490, 2428491, 2428492, 2428782, 2428810
