Morbark

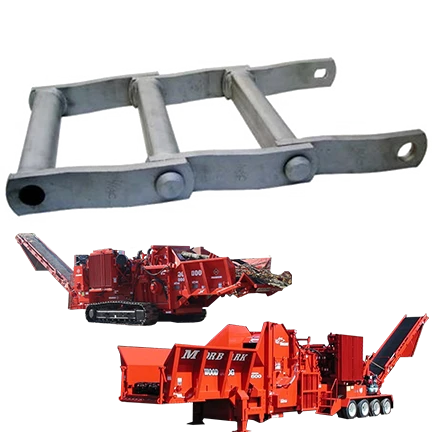

Morbark Grinder Infeed Drag Chain
- SKU:
- MB-G-C-0
- Availability:
- Usually ships in 1-2 business days.
- Minimum Purchase:
- 3 units
- Shipping:
- Calculated at Checkout
Description
Sold in 10' Sections, including (1) cottered master pin. Call if unsure which chain you need! All we need is your machine Serial Number.
Please note: Morbark PN's often refer to chain with teeth attachments or specific lengths. We are not able to offer teeth attachments at this time. Specific length must be ordered by phone. Part numbers are for reference only. We recommend buying and welding tabs onto the chain sidebars once on site if needed.
Models Covered: 2600, 3200, 3400, 3600, 4600, 5600, 6600, 7600, and more.
| Spec | WDH-110 | WDH-120 |
| Average Pitch | 6" | 6" |
| Ultimate Strength | 61,000 lbs | 102,000 - 112,500 lbs |
| Sidebar Height | 1-1/2" | 2" |
| Sidebar Thickness | 3/8" | 1/2" |
| Pin Diameter | 3/4" | 7/8" |
| Max Sprocket Width | 9" | 8-3/4" |
| Max Chain Width | 11-3/4" (with rivet head) | 12" |
Morbark Part Numbers: 24256-116, 40441-901, 40525-301, 40526-901, 40686-901, 40685-901, 24256-114, 24256-219, 24256-117, 40456-901, 40455-901, 24256-115, 40487-901, 40467-901, 4068-901, 40694-901, 40695-901, 40696-901, 40596-901, 40597-901, 40523-901, 40524-901, 40530-901, 40531-901
