Morbark Tub Support & Guide Rollers (All Models)

Heavy-Duty cast iron core wheels with 1-1/2" - 2" poly tread for direct replacement of Morbark OEM tub guide and support wheels. Built to suit all models, 950, 1000, 1050, 1100, 1150, 1200, 1250, 1300A/B, 1400, 1500, 1600.

Morbark has used a few variations of wheel and shaft diameter over the years, so we have a couple options for replacement to suit what you prefer. There are some specs that remain consistent across all machines:

• 10" total diameter
• 3" or 4" tread width
• 2" hub width("bore" length)
• 1-1/2" - 2" thick Shore 75A soft polyurethane tread (original OEM was rubber)
• Approx. 3,000lb load capacity

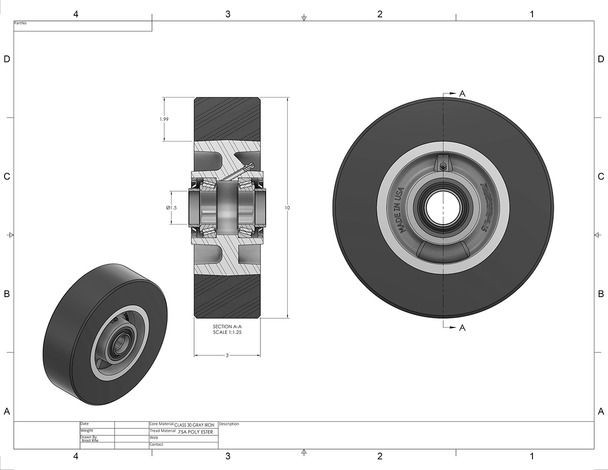

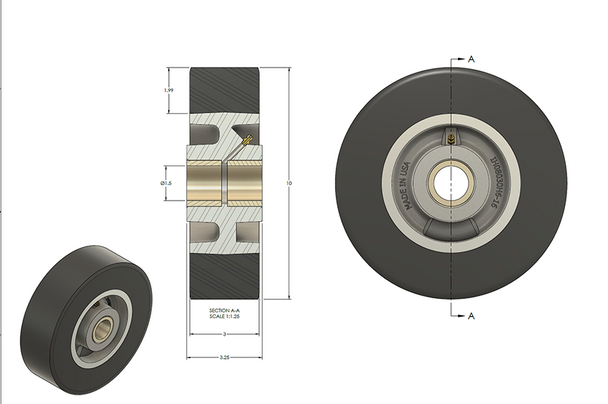

The OEM 'Nyoil' bushing can be replaced with a more common, easily purchased self-lubricating bronze-bushing. It is also possible to swap to a more standard double pressed ball bearing arrangement. The OEM ball bearing style is directly replaced like for like. The only difference may be bearing OD or tread thickness.

Does NOT include shaft or mounting bracket/hardware.

Morbark OEM part numbers for reference: 40016-846, 40127, 846, 40029-571, 40627-571, 40119-565, 40006-565, 4001-575, 40163-576, 40033-576
