Peterson 5700 Series Tip

SKU:
ES241-3
Availability:
Usually ships within 2 business days
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
  • Peterson 5700 Series Tip
  • Peterson 5700 Series Tip
  • Peterson 5700 Series Tip
$51.77

Please call with any questons or issues (866) 227-2244

Description

High quality Kennametal brand hammer tip.

Buyers must measure their holders (hammers) to ensure that the back (or mounting) dimensions match the hammer tip, and that there is sufficient room at the face of the tip for clearance from the grinder screens.

Peterson 5700C, Peterson 5700D, Peterson 5710, Peterson 5710D, Etc.

Interchangeable with Peterson Part Number: 83377-06, 92730-06, 83375-06, 83375-08, 85750-06, 85750-08, 83376, 11 6761, 94371

Interchangeable with Aftermarket Part Number: GCS Hammerhead 10B1, Quadco Q10762T, QG1504, QG1506

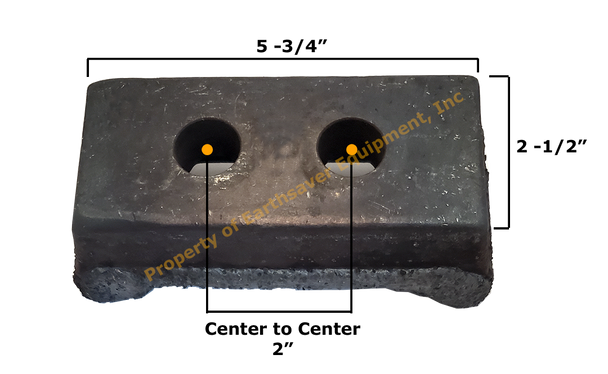

Mounting Dimensions Measurement
Outside Width 2-1/2"
Width Inside Rails NO RAILS
Length 5-3/4"
Bolt Center to Center 2"

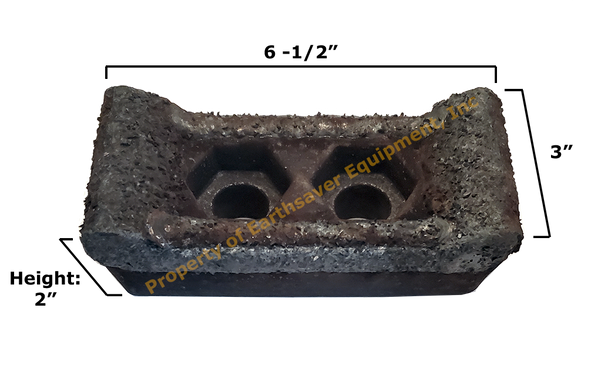

Face Dimensions Measurement
Width  3"
Length  6-1/2"
Height 2"
Bolt Size 7/8"
